Ultimate Visibility
PageBuilder OS
PageBuilder OS: Quick and easy way to access professional software tools like Focus Peaking, HD Waveform, and 3D LUTs.
HDR Preview and 3D LUT Support
UltraBright monitors feature HDR Preview with 10-Bit ColorEngine and up to 2500 nits. Fine tune your HDR Preview with white point
and black point adjustment sliders. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT engine.
Efficiently UltraBright

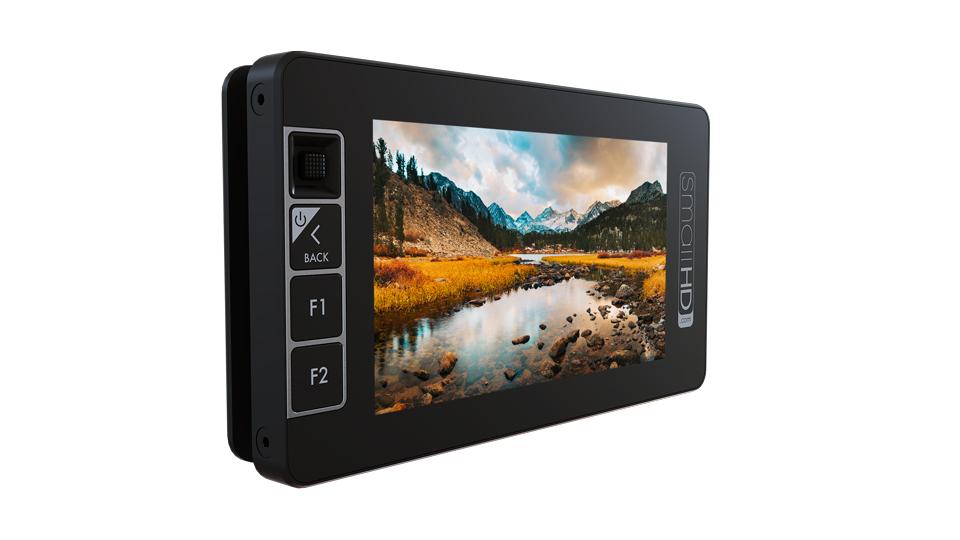

The 503 and 703 UltraBright are the Brightest 5″ and 7″ monitors in the world while maintaining low power consumption. In
addition to LEMO power, Gold Mount, V-Mount and Sony L-Series battery plates are available.
Software That Eliminates Hardware
Pagebuilder OS enables you to send your video signal downstream via the Output Preview page. Any LUTs applied to the Output Preview
page will also be mirrored downstream. Easily convert HDMI/SDI signals with Cross Conversion .
HD Scopes with Pixel Accurate Data Analysis
Display up to three, fully customizable Scopes on screen at a time. Utilize Color Picker to show raw pixel values from the displayed video.
Expose with Confidence
Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra
to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.
Dual View
Monitor two input sources simultaneously. You can apply LUT’s and tools to each source individually. Great for monitoring A/B
cameras or pre and post LUT footage. You can also apply tools to each page individually.
Custom Focus Assist & Peaking Tools
Focus assist creates a bright highlight on in-focus subject matter; highly recommended when focusing on the fly. Focus Peaking
increases the image sharpness allowing more detailed focusing. Change your color and intensity of your focus tools.
Versatile Image Framing
Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays with custom opacity level and
colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9 and Custom (user selectable).

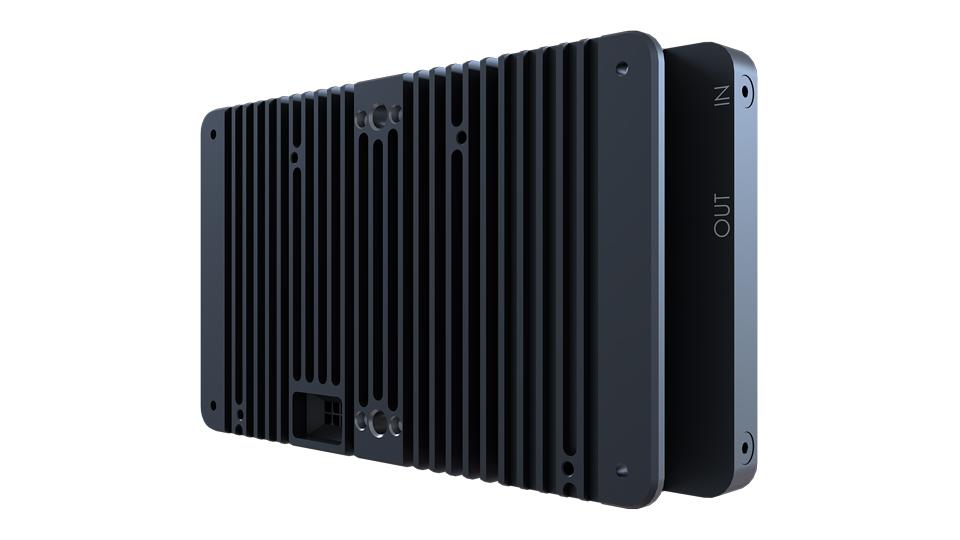

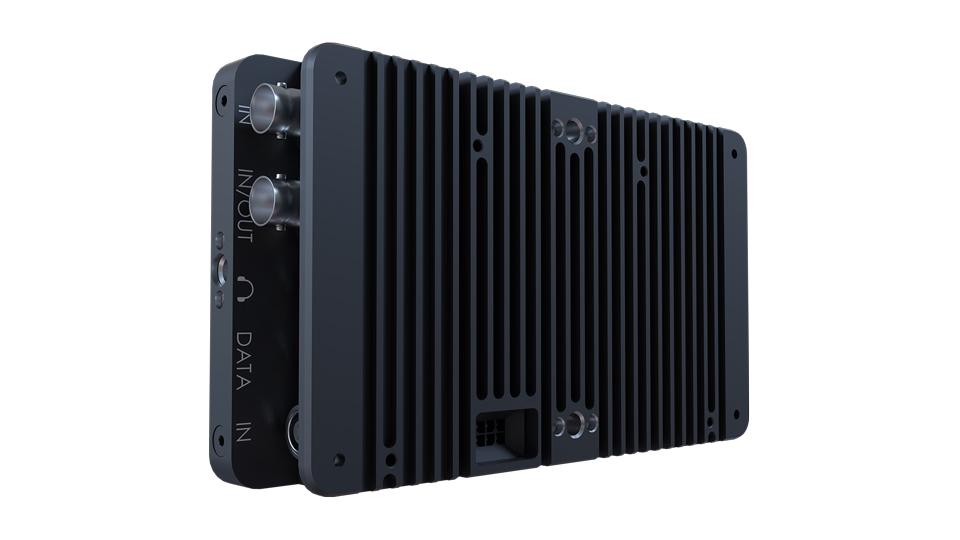

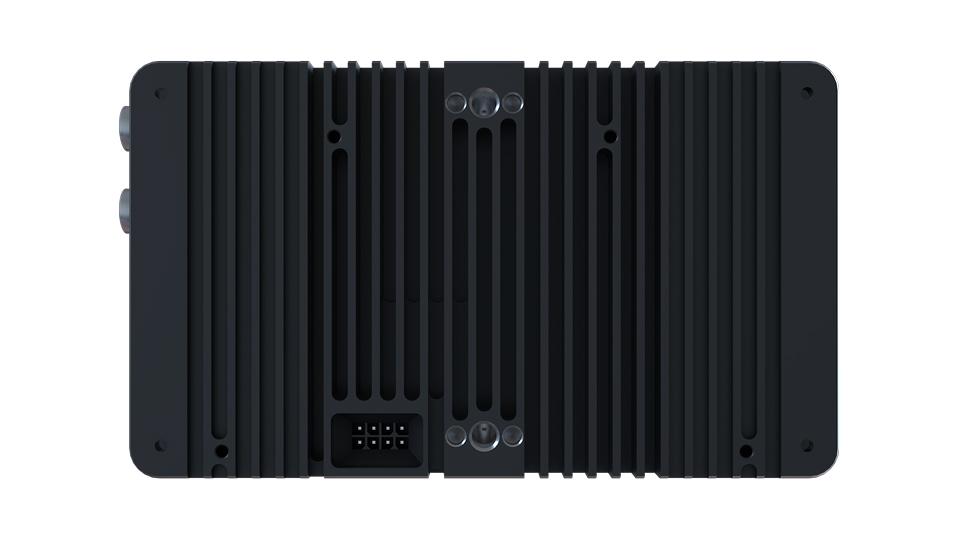

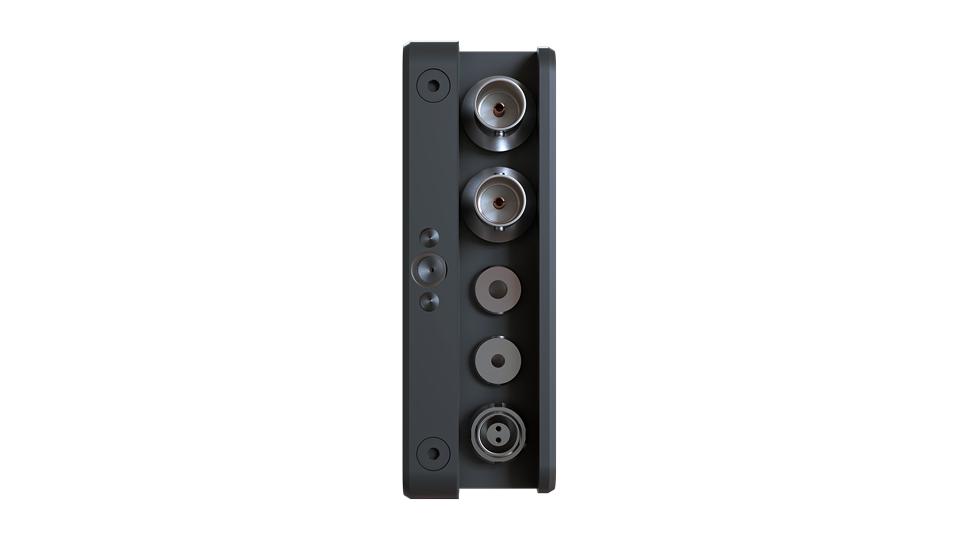

Physical Features
Durability
Rugged milled aluminum housing
⅛in. headphone jack

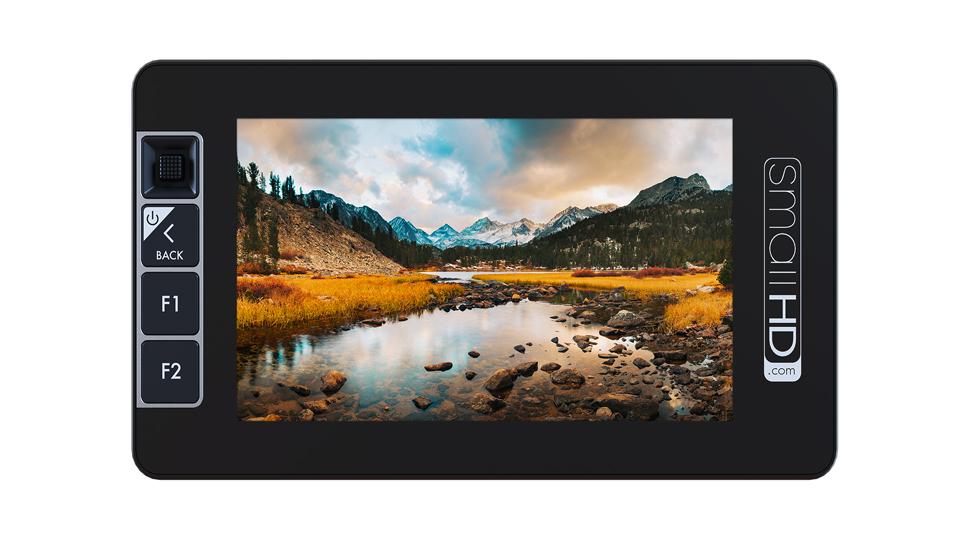

Function buttons
12v 2-pin LEMO in

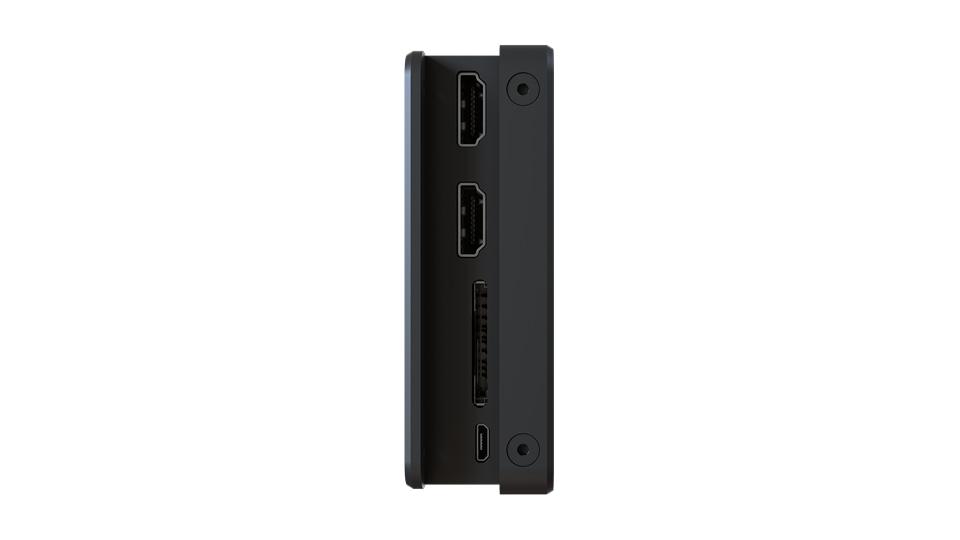

SD Card Slot
Cross Conversion
