The Bolt DSMC2 is a RED camera module that features the same zero-delay wireless video of the renowned Bolt line. Bolt DSMC2 modules attach seamlessly to the back of RED DSMC2 cameras via pogo pin connections, with pass-through power and video to keep setups clean of cable-clutter and save time in prep.
Zero-Delay Video
Transmit pristine 1080p60 wireless video instantly to receivers up to 500 ft. away.
Compatibility
Bolt DSMC2 modules are compatible with Bolt 500, XT and LT systems, along with a wide variety of unique receiver solutions like SmallHD’s 703 Bolt, Focus Bolt, and the universal Sidekick series.
Disclaimer: Bolt DSMC2 receives video from the camera’s HDMI monitor path, which is shared with the camera’s left side EVF/LCD port. Use the camera’s menu to choose the active video path. (10-0939) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

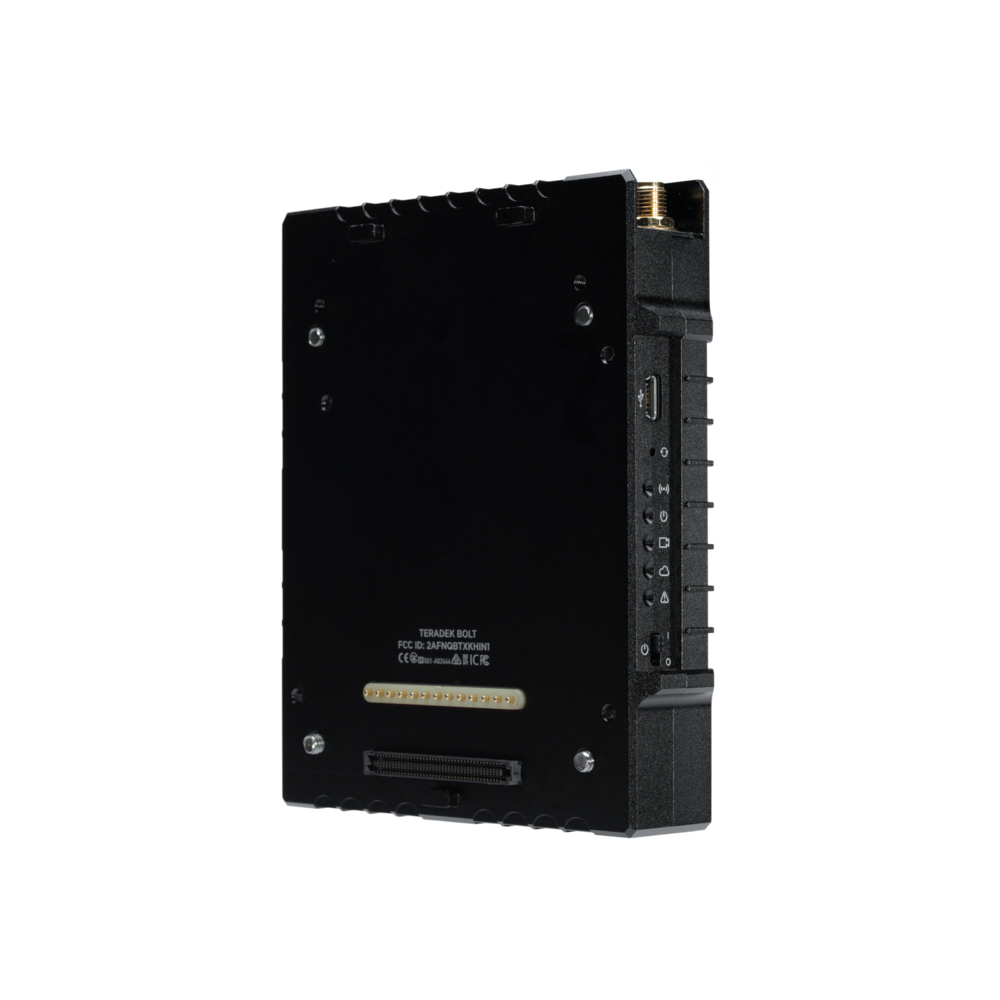

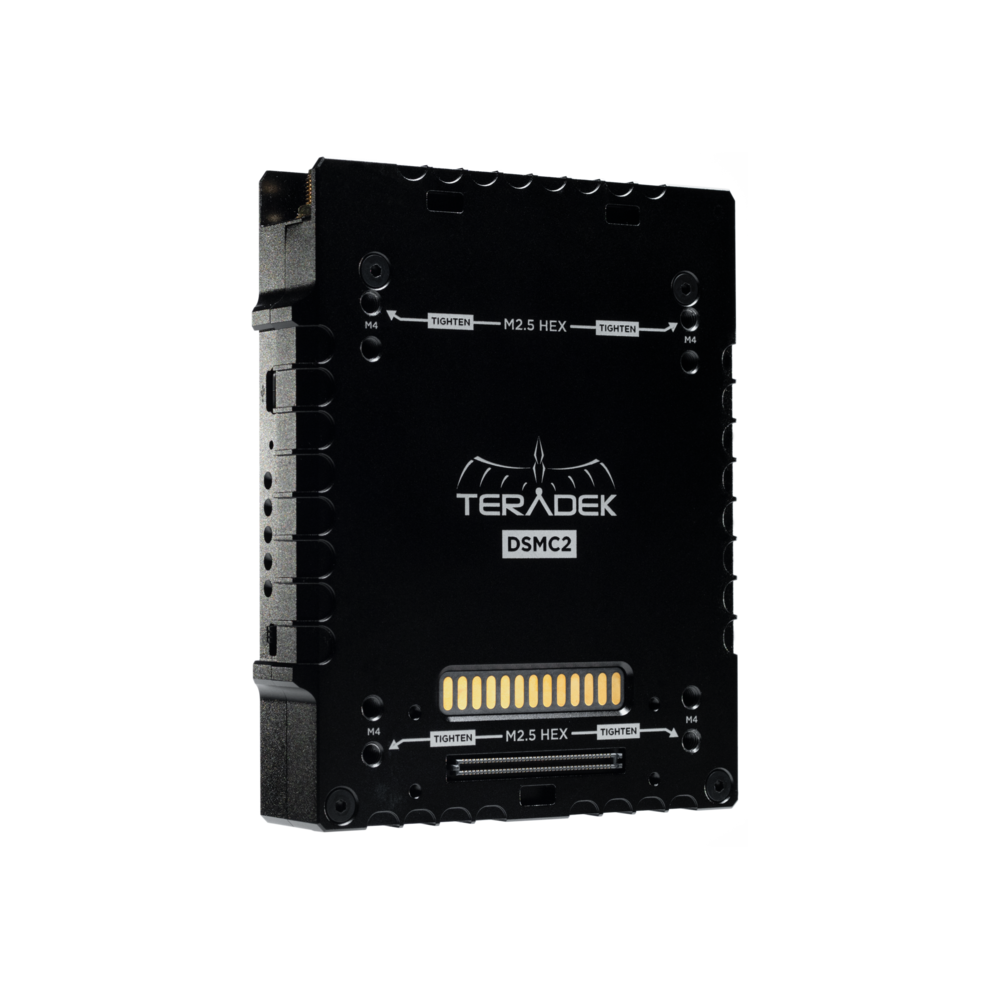

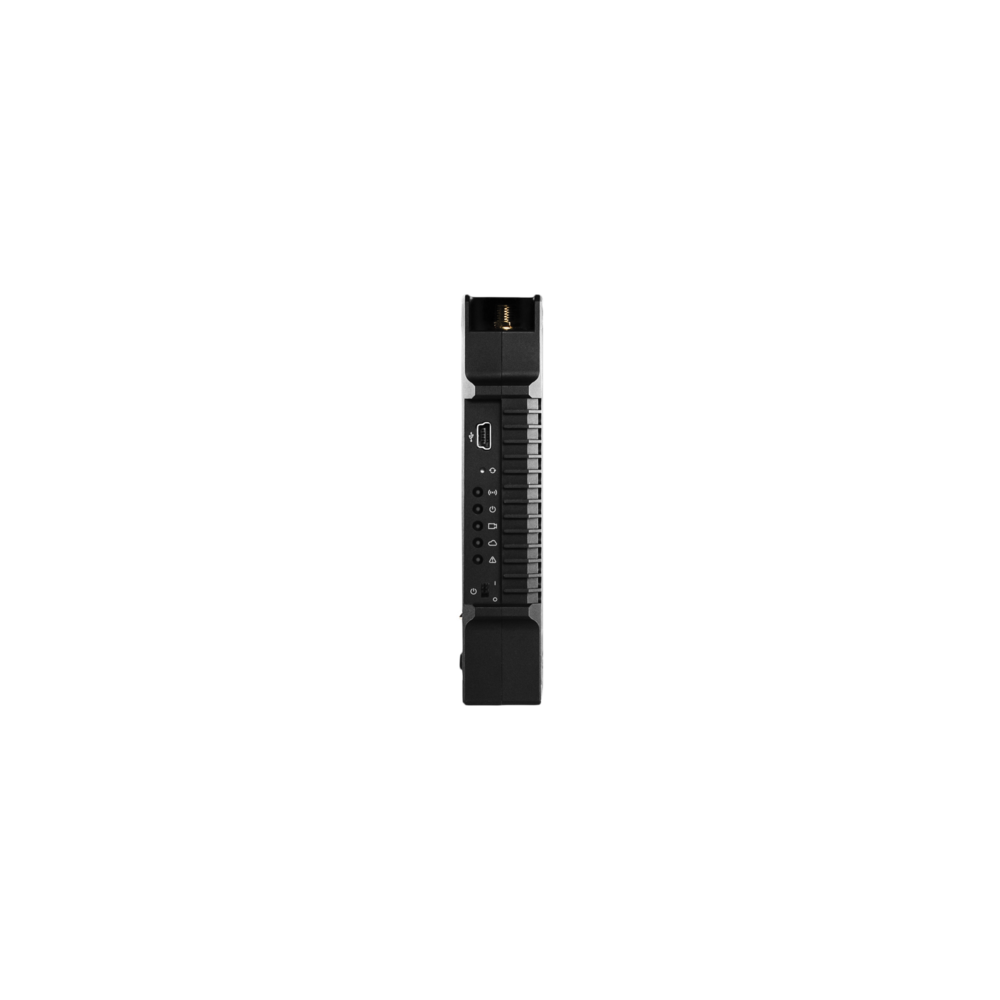

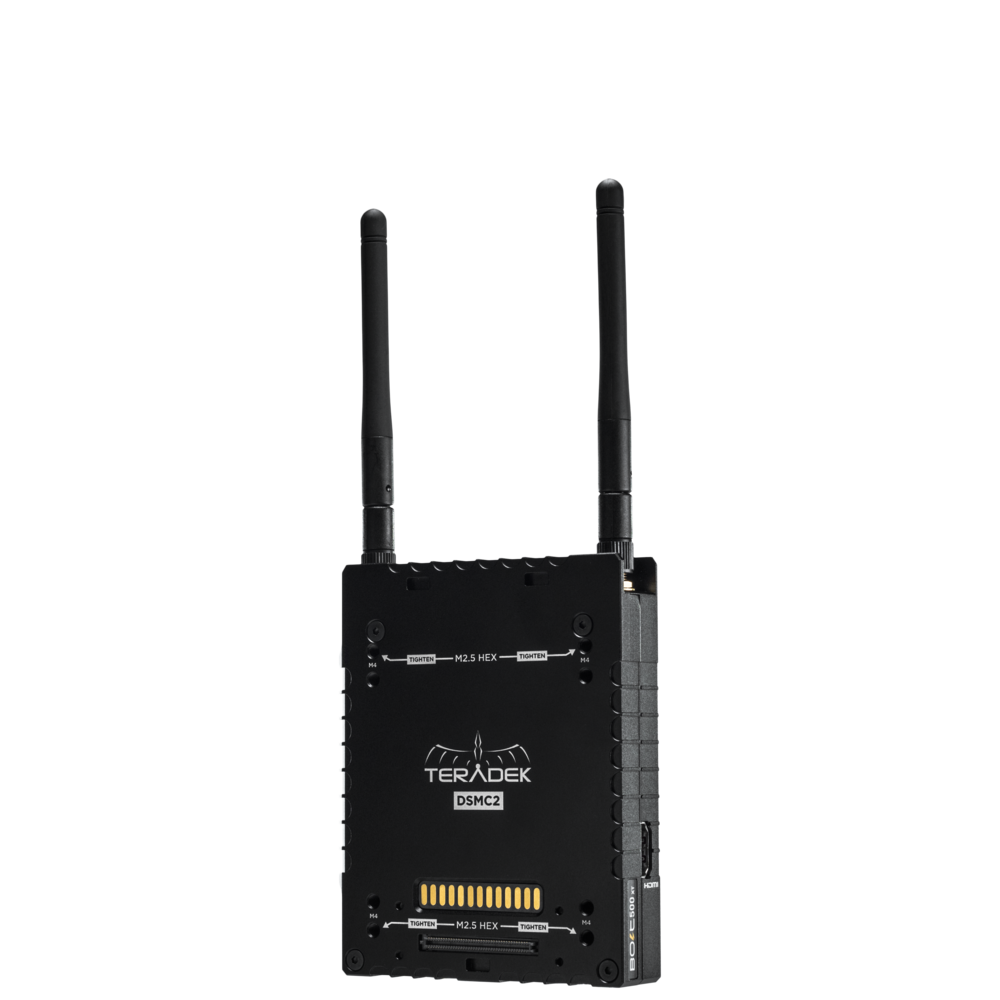

Bolt 500 DSMC2 Wireless TX – Bolt 500 DSMC2 Wireless TX – 10-0939
Attaches seamlessly to the back of RED DSMC2 cameras, with pass-through power and video for a cable-free setup.
Zero-delay 1080p60 wireless video.
Compatible with Bolt XT & LT receivers of the same range.
Compatible with Sidekick II and integrated SmallHD monitors.
Brand
Teradek
| Weight | 2 kg |
|---|---|

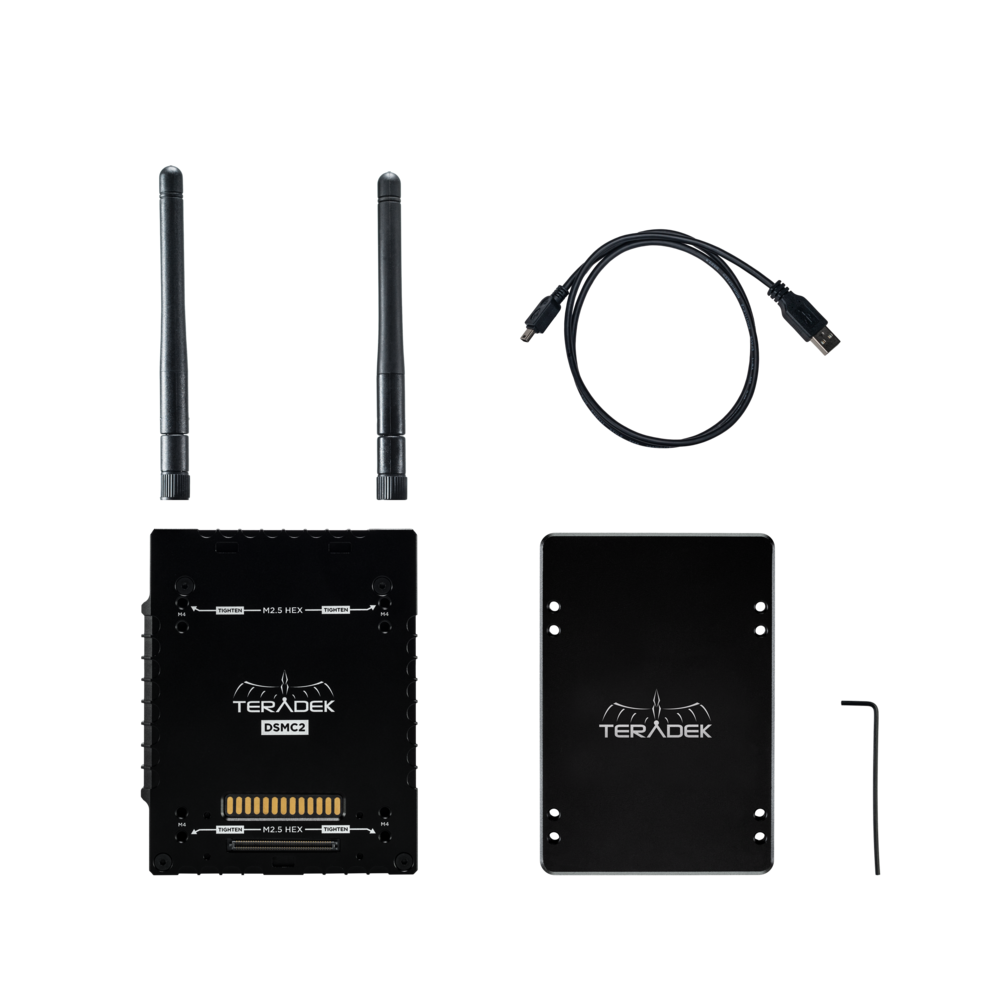

| In the box | This set comes with 1 transmitter only. You will need a corresponding receiver to work with the transmitter. 1 x DSMC2 Guard 1 x Hex L key 2.5mm size 3-5/8" length 1 x Mini-USB (5pin) to USB – 18in Cable (Firmware Cable) 2 x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna) |
| Specs | Technical Specifications: #Video – Video Inputs : 1 x HDMI monitor path from DSMC2 camera – Sdi Compliance : SMPTE 259M/274M/296M/372M/424M-B/425M – Video Outputs : 1 x HDMI (Type A) – Sdi Ancillary Data Support : supports metadata, timecode, and start/stop flags – Color Sampling : SDI: YCbCr 4:2:2, 8-bit HDMI: RGB 4:4:4, 8-bit – Input Cross Conversion : N/A – Delay Tx To Rx : <0.001sec (without format conversion) #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60 720p50/59.94/60 #Video Processing – Video Compression : visually lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : Yes – Color Correction : N/A #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : SDI-embedded 2-Ch 24-bit, 48 kHz PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : N/A #Outputs – Audio Output : N/A #Physical – Dimensions : 4.2", x 2.5" x 0.81", (106.71mm x 63.68mm x 20.54mm) – Weight : 8oz (226g) – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB – Mountability : Mounts seamlessly onto the back of DSMC2 camera #Interfaces – Http : None – Configuration Interfaces : None – Switches : On/Off and Reset Switch – Recording Storage : N/A – Mobile App : N/A – Desktop App : Feature-rich Bolt Manager Application for OSX & Windows – Usb Interface Functionality : Upgrade via Mini-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : N/A – Wireless : Non-DFS Frequencies: US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz EU & JP: 5.19 ~ 5.23 GHz DFS Frequencies: US: 5.27 ~ 5.55 GHz and 5.67 GHz EU & JP: 5.27 ~ 5.67 GHz – Number Of Channels : 11 – Channel Bandwidth : 12x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto – Encryption : AES-128 – Rf Power : 17 dbm EIRP (with two 2dbi antennas) – Rf Sensitivity : -85 dBm – Range : Up to 500 ft line of sight – Unicast Multicast : Unicast/Multicast – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones #Power – Power Input : DSMC2 rear pogo connector – Power Output : N/A – Battery : None – Battery Runtime : N/A – Nominal Power Consumption : 7.5 Watts (Measured at 1080p60) – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0 ~ 40 deg-C – Humidity : N/A |
| UPC | 818264023242 |
