Bolt Dual Battery Plate Mount 14.4V – TX / V-Mount – 11-0760

Securely fasten your Bolt Receivers between Battery Plates (options for Gold-Mount or V-Mount)
Allows for seamless power solution for Monitor and Bolt Receiver combinations
Power pass-through plates
Three 1/4 20″ Mounting points
Two 1/4 20″ Pass-through slots
D-Tap Output to power Teradek Bolt Receiver

SKU: 11-0760 Categories: , Tags: , , , , , ,

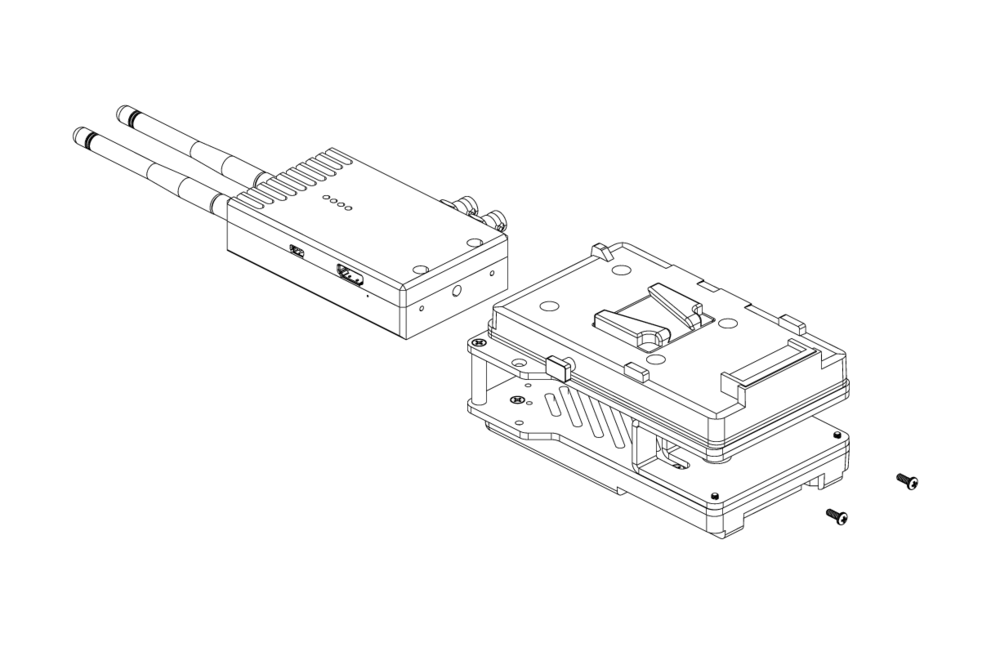

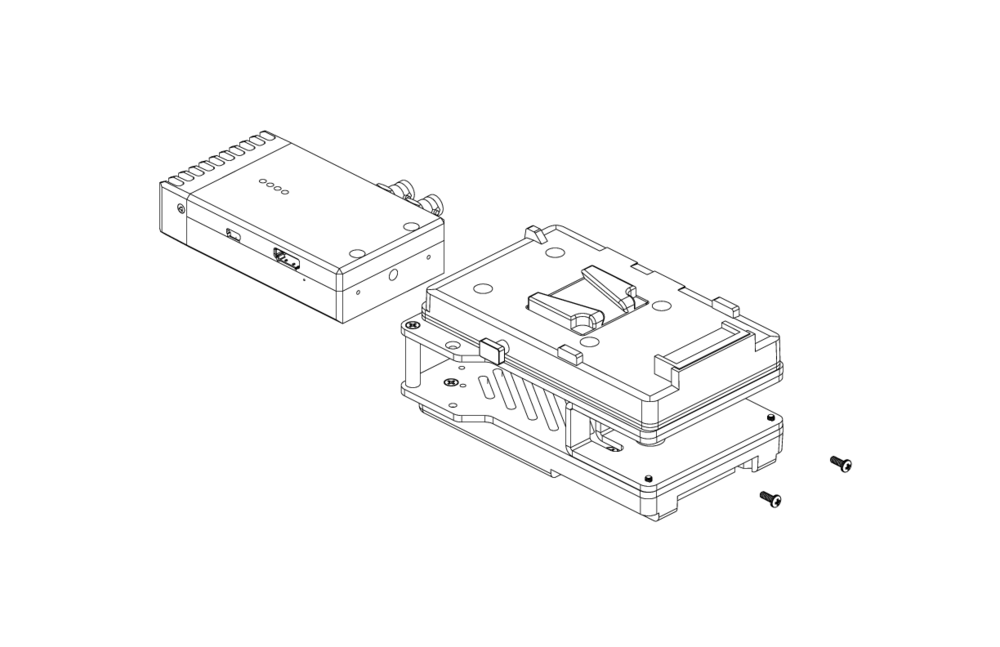

This Dual Battery Plate from Teradek allows you to sandwich Bolt Transmitters or Receivers between your camera/monitor and battery using Gold (AB) Mount or V-Mount on both sides. It also offers one D-tap accessory output (50W max) on the side.

**This battery plate is designed to be used exclusively with the Teradek Bolt Sidekick. Not compatible with Paralinx Receivers**
Key Features:

Surrounds Bolt Transmitter Chassis with Mounts on Both Sides
Mounts Bolt to Camera Battery Plate
Options for Gold-Mount or V-Mount
D-Tap Output

Weight 1.4 lbBox: 6.6 x 5.6 x 5.5″ (11-0760) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

Brand

Teradek

Teradek designs and manufactures high performance video solutions for broadcast, cinema, and general imaging applications. From wireless monitoring, color correction, and lens control, to live streaming, SaaS solutions, and IP video distribution, Teradek technology is used around the world by professionals and amateurs alike to capture and share compelling content. Sematron Italia official Teradek distributor - Sematron Italia distributore ufficiale Teradek Rivenditore di tutti i prodotti Teradek: Teradek Bolt 4k, Teradek Bolt, Teradek RT, Teradek Serv Pro, Teradek Ace 500, Teradek Ace 800, Teradek Colr, Teradek Aci, Ip video, Teradek Prism, Teradek Vidiu Go, Teradek Bond, Teradek Cube Encoder Decoder, Teradek Core, Teradek Sharelink, Teradek Airmix, Teradek Orbit PTZ, Teradek Ranger, Teradek Link Pro, Teradek Link, Teradek Node
Weight 1.76 kg
Dimensions 7 × 7 × 5 cm
In the box

Bolt Dual Battery Plate Mount 14.4V – TX / V-Mount
Specs

Bolt Dual Battery Plate Mount 14.4V – TX / V-Mount
UPC

854199005441
Teradek : Bolt TX Dual V-Mount Battery Plate w/14.4V Cable (11in/27cm) - Not compatible with Bolt XT or LT / (Bolt TX Dual V Mount Batt plate 14.4V Cable (11in/27cm))
