The MK.3.1 Brushless Motor is a revolution in wireless lens control, offering superior response, smoother operation, and 4 times the service life of brushed motors. The motor never cogs, sparks, or skips and operates nearly silently, even at high speeds. The MK3.1 Brushless Motor works with any Teradek RT Lens Control System.
This product does not include a motor cable. Please check out Motor Cables after adding to cart. (15-0025) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

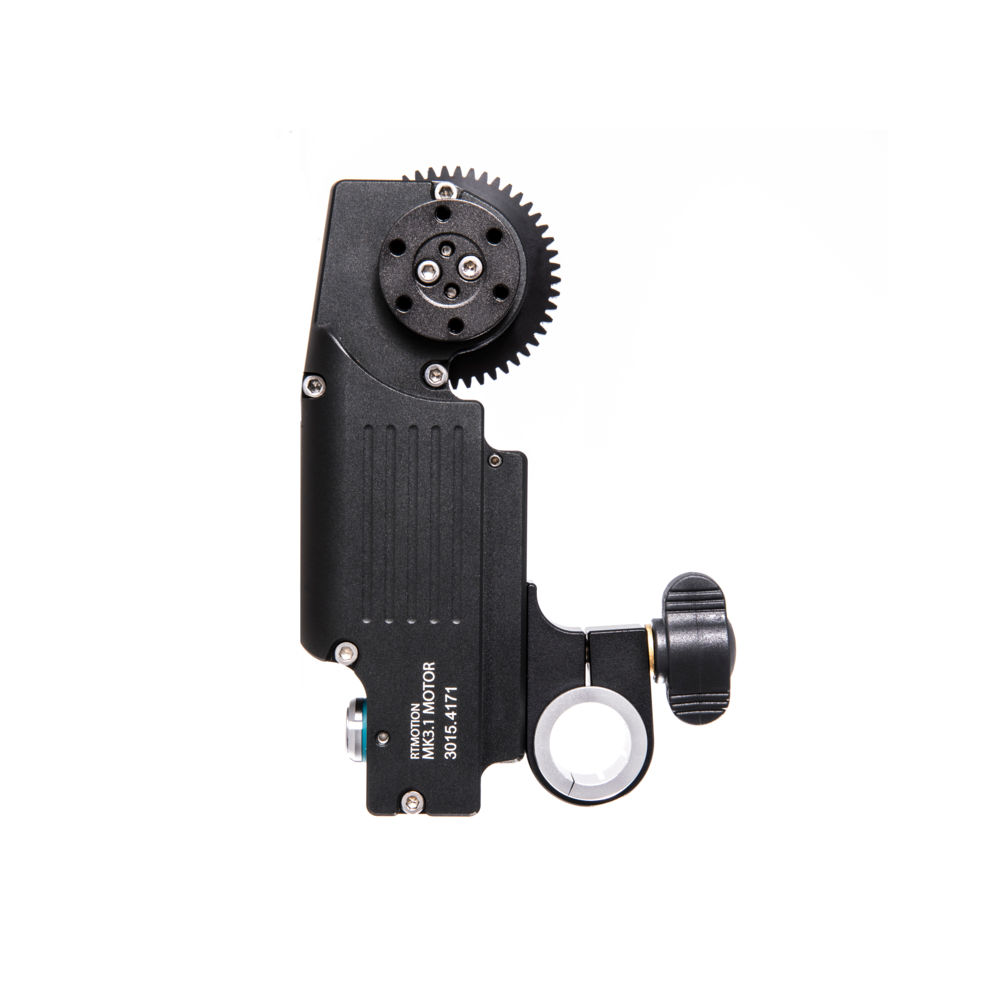

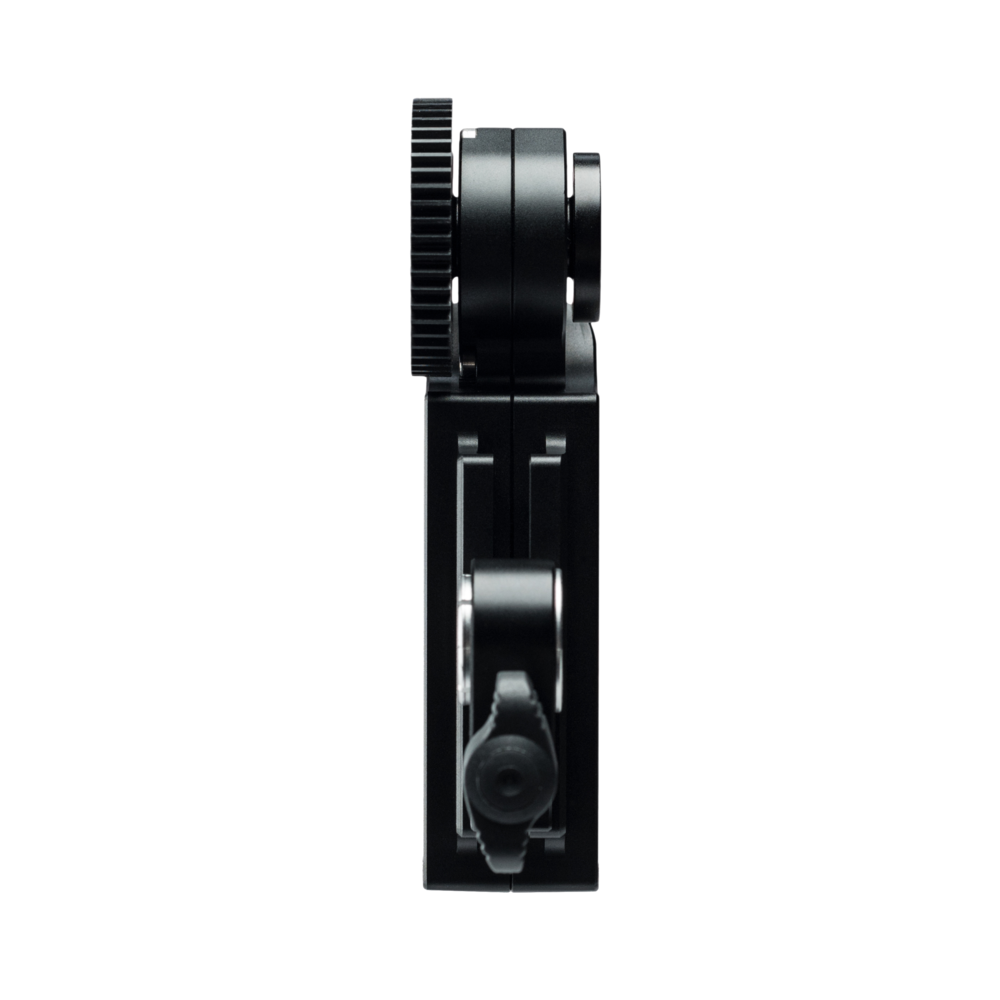

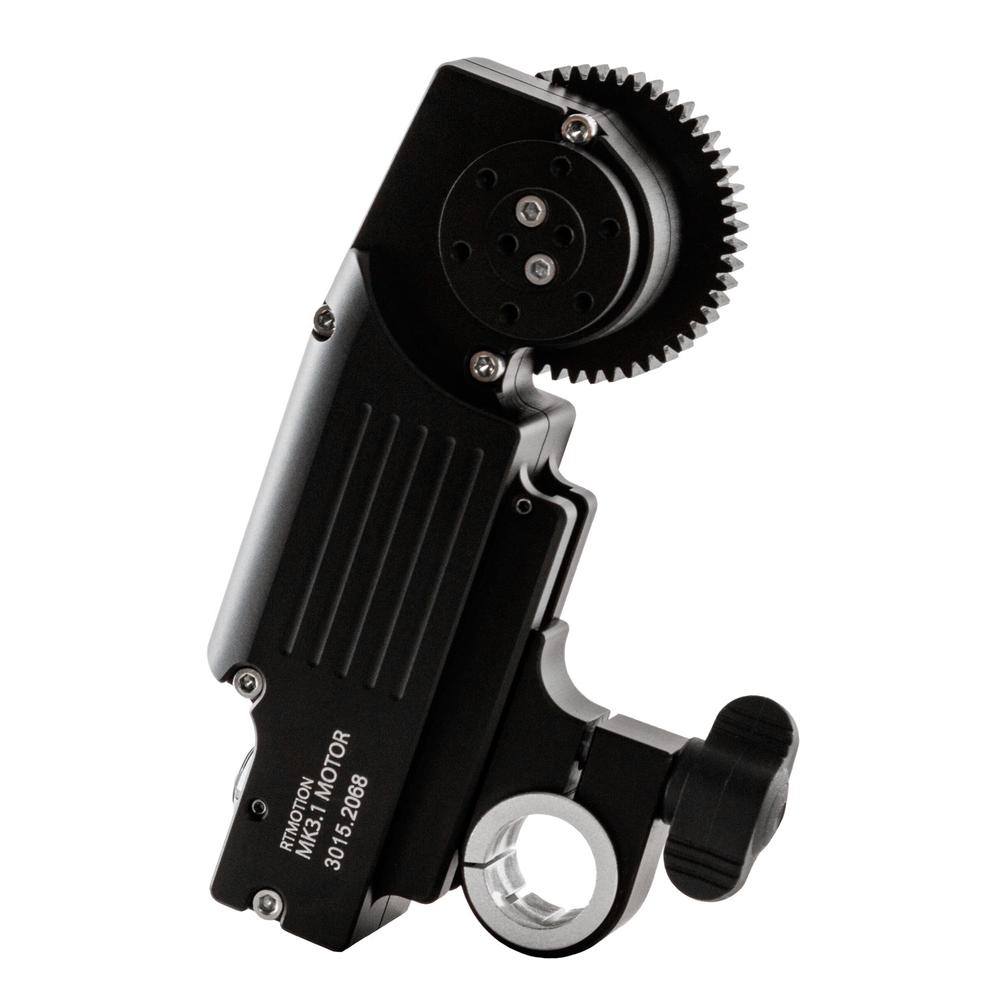

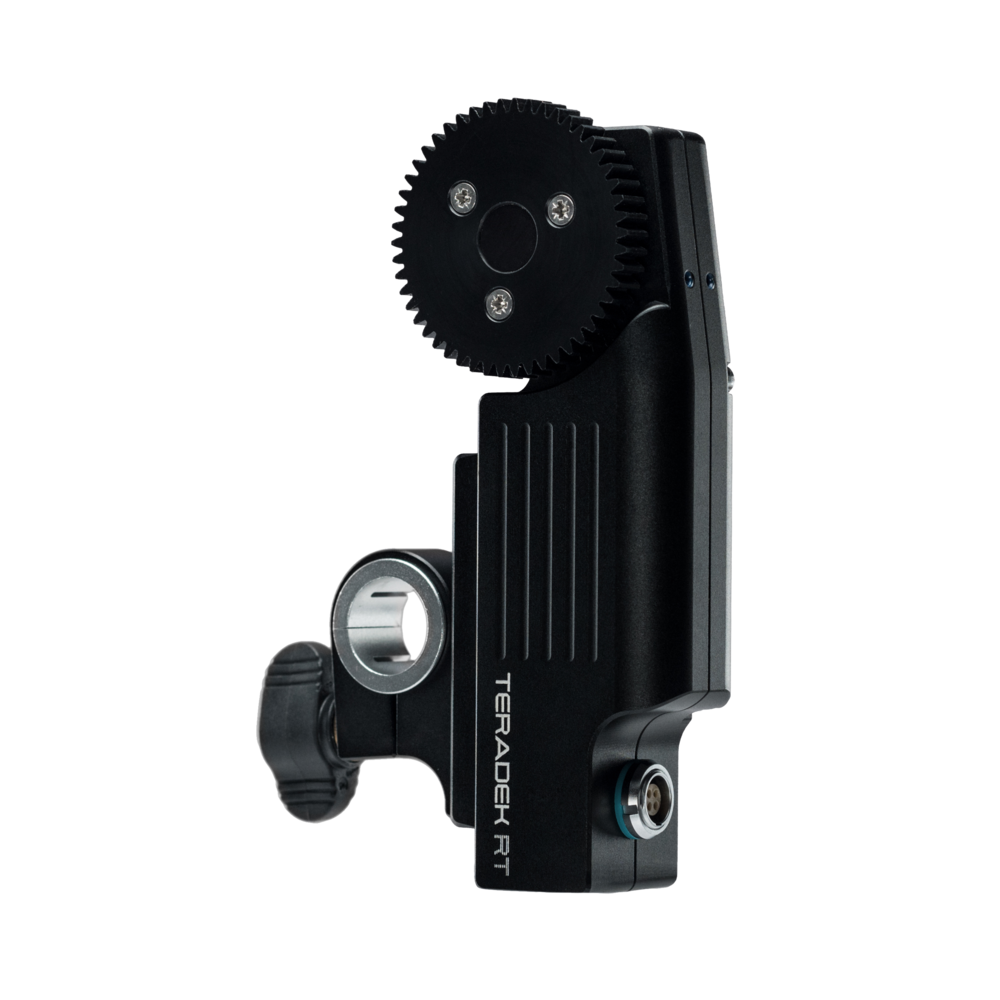

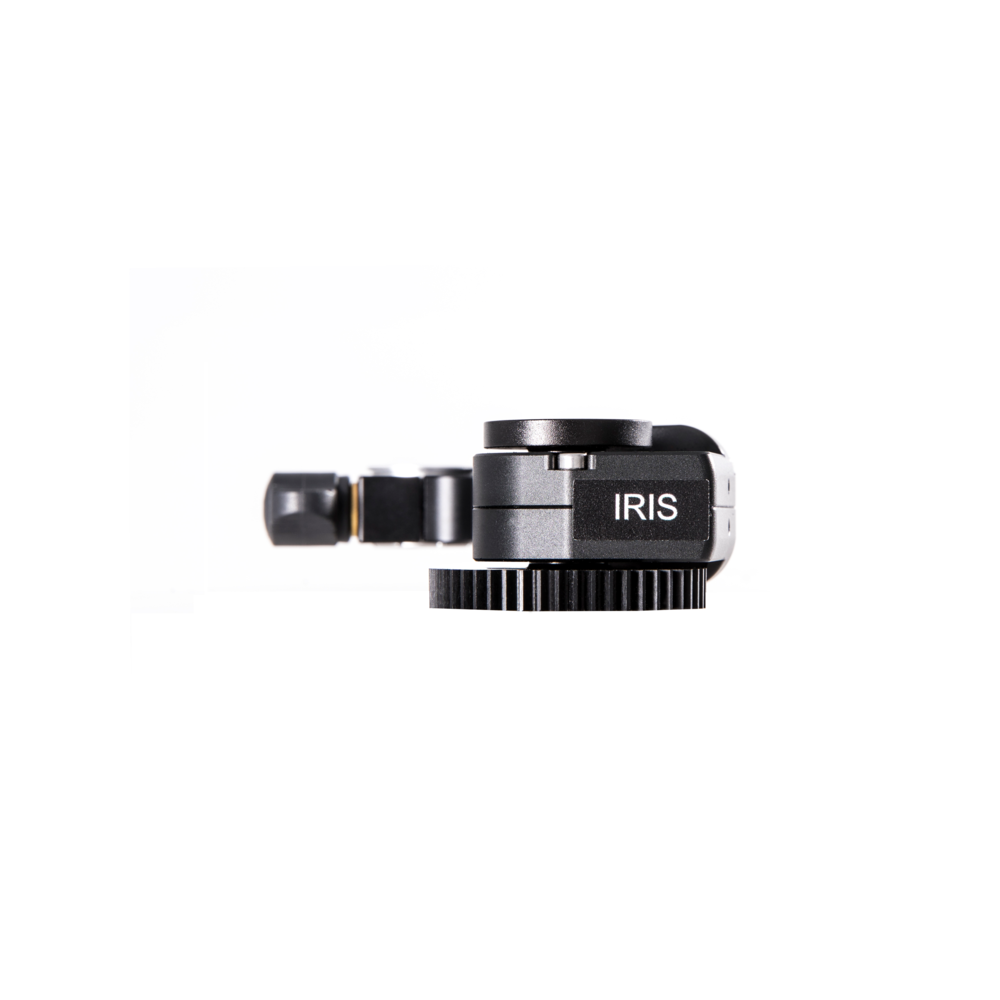

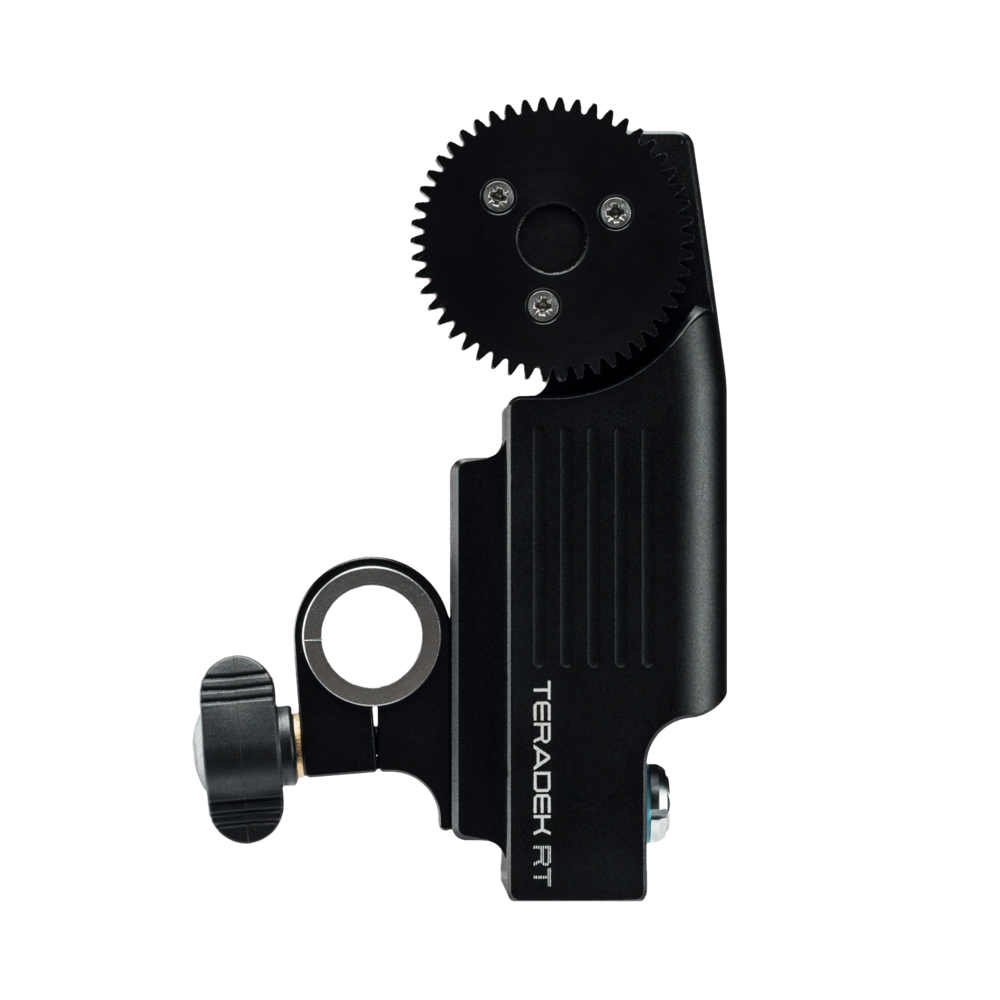

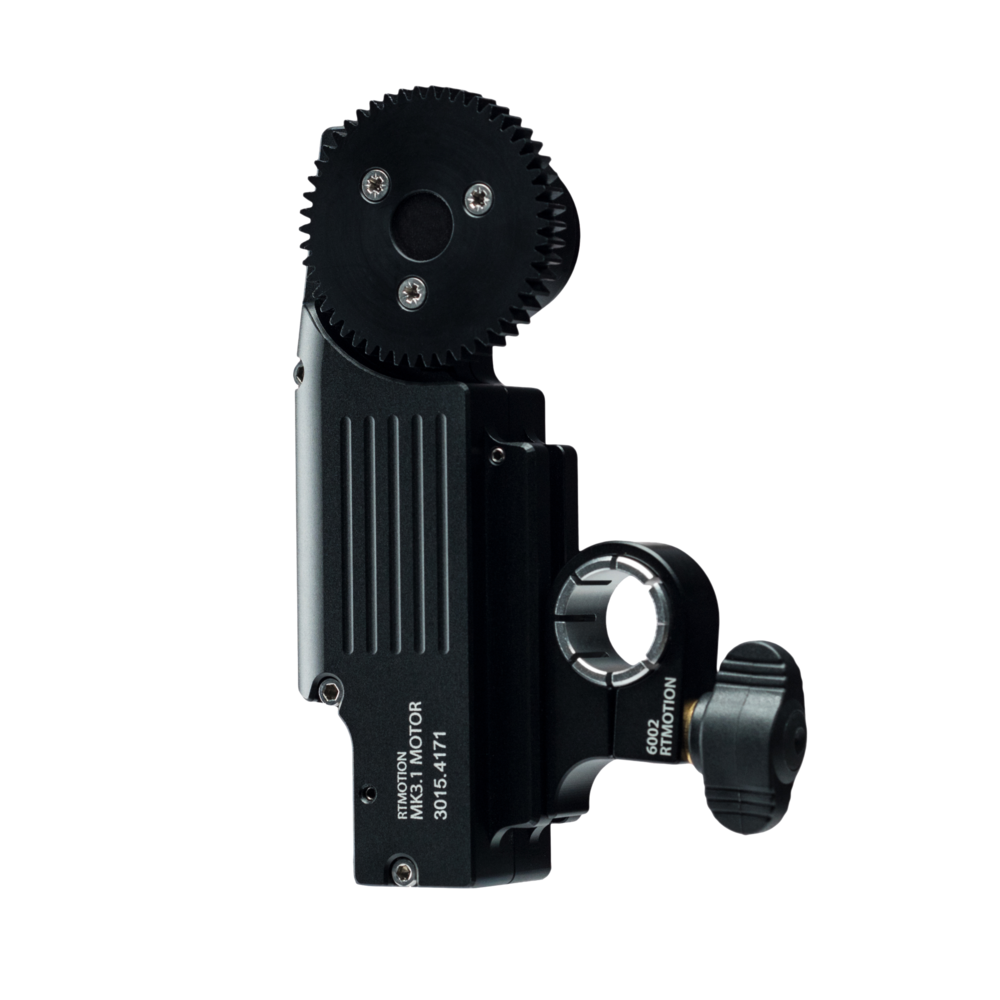

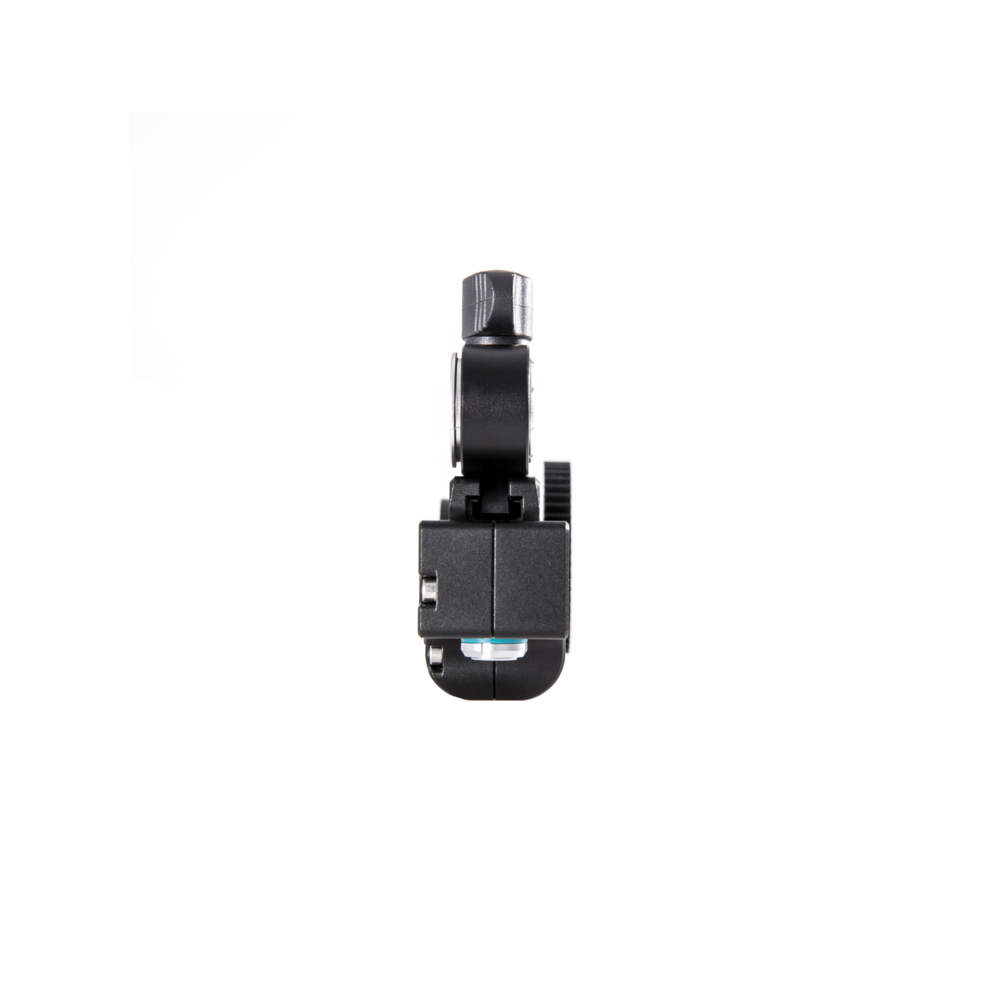

MK3.1 Brushless Lens Motor – MK3.1 Lens Motor – 15-0025
The MK.3.1 Brushless Motor is a revolution in wireless lens control, offering superior response, smoother operation, and 4 times the service life of brushed motors. The motor never cogs, sparks, or skips and operates nearly silently, even at high speeds. The MK 3.1 Brushless Motor works with any Teradek RT MK 3.1 or Latitude lens control system.
• Drive gear can be mounted on either side
• Full range of gears available
• Adjustable motor response for smooth to sharp moves
• 2.2 Nm maximum allowable torque
• Support for 15mm/19mm rods with good height adjustment
• Compact chassis design with super thin and flexible cables
Brand
Teradek
Teradek designs and manufactures high performance video solutions for broadcast, cinema, and general imaging applications. From wireless monitoring, color correction, and lens control, to live streaming, SaaS solutions, and IP video distribution, Teradek technology is used around the world by professionals and amateurs alike to capture and share compelling content.
Sematron Italia official Teradek distributor - Sematron Italia distributore ufficiale Teradek
Rivenditore di tutti i prodotti Teradek: Teradek Bolt 4k, Teradek Bolt, Teradek RT, Teradek Serv Pro, Teradek Ace 500, Teradek Ace 800, Teradek Colr, Teradek Aci, Ip video, Teradek Prism, Teradek Vidiu Go, Teradek Bond, Teradek Cube Encoder Decoder, Teradek Core, Teradek Sharelink, Teradek Airmix, Teradek Orbit PTZ, Teradek Ranger, Teradek Link Pro, Teradek Link, Teradek Node
| Weight | 0.53 kg |
|---|---|
| Dimensions | 3.19 × 1.1 × 4.53 cm |
| In the box | 1 x MK3.1 Brushless Lens Motor 1 x 0.8mod Motor Gear – Cine, ARRI, Zeiss, 32pitch, Sony etc [11-1423] |
| Specs | Technical Specifications: #Interfaces – Connectors : 1x 0B.4 #Environmental – Operating Temperature : –20°C to 50°C #Power – Operating Voltage : 7-17V – Power Input : <1W idle. 40W peak #Physical – Gear Pitch : 0.8 Mod standard (others available) – Max Torque : 2.2 mm – Max Speed : 3.0 revs /second – Construction : All aluminium – Mountability : Compatible with 19, 15 mm Rods – Dimensions : 4.5 x 1.6 x 1", (115 x 40 x 26 mm) – Weight : 7.5 oz (212 g) #Packaging – Weight : N/A – Box Dimensions : N/A |
| UPC | 818264022382 |
