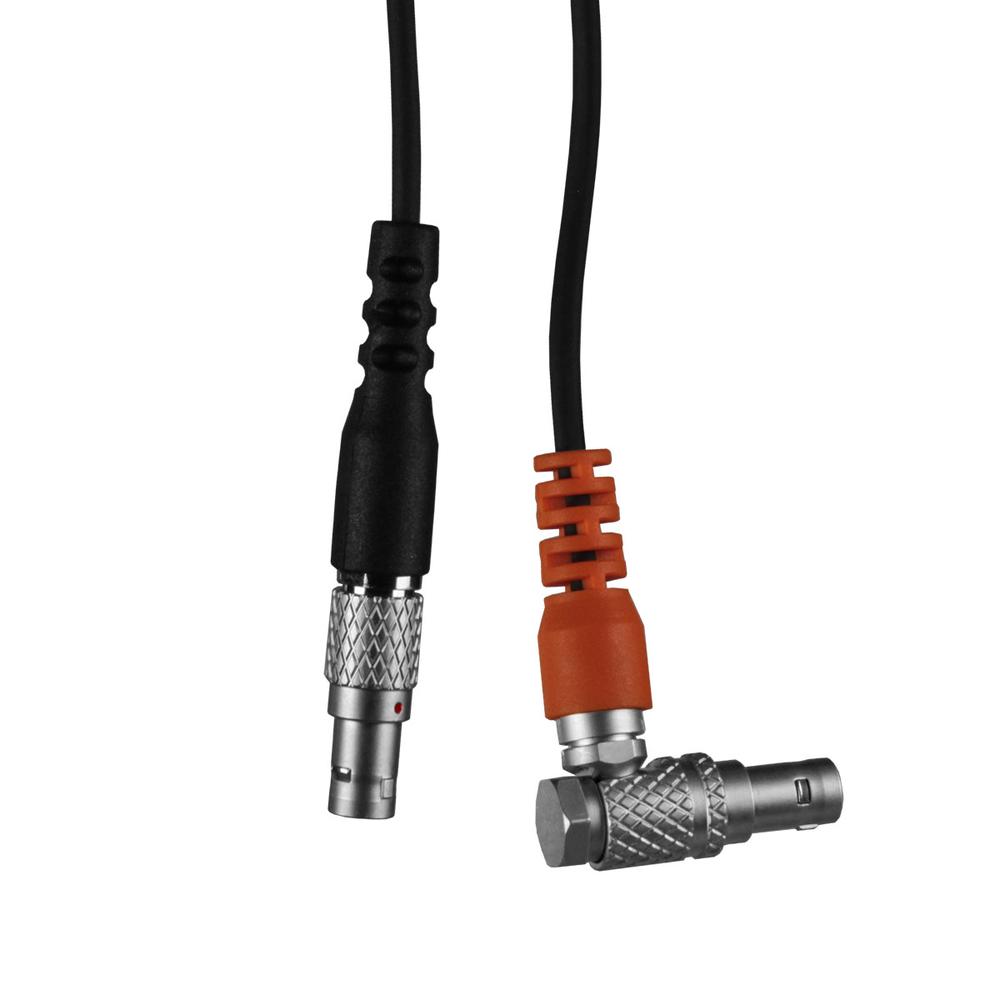

Power Cable, 0B 2p (Crossover) RA
For MDR

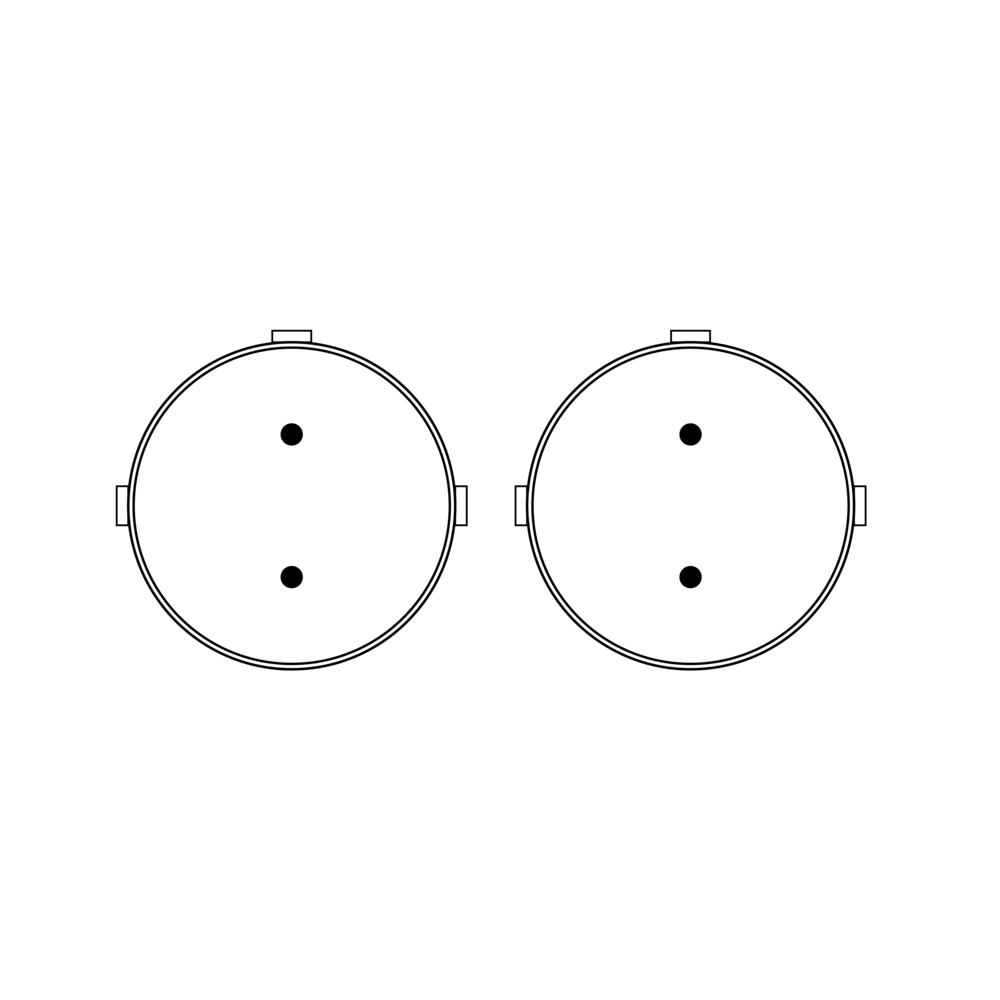

Power the MDR from 2pin LM.0B, US type (Pin2=GND). This cable is wired 1-2, 2-1, to allow the MDR (Pin1=GND) to power off USA style 2pin LM power source (Pin2=GND). This will NOT work on an ARRI, RED, etc., which use the “European” standard of Pin1=Gnd
To be clear, this is REVERSING the pins, to allow the MDR (Pin#1=GND) to power off a supply where Pin#2=GND. Compatible with:- – Letux Helix 2pin power outputs 40cm cable length. This cable has a right-angled LM.0B connector and colour coded overmold allowing for an easy compact setup. (11-1377) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek
